Door Viewer

Jifu is a Door Viewer Manufacturer supplying mechanical door viewers, door peepholes and door eyes for hardware distributors, door manufacturers, importers, hospitality projects and residential door programs.

As a Door Viewer Manufacturer in China , we offer brass and zinc alloy door viewers in different viewing angles, diameters, finishes and door-thickness configurations. OEM dimensions, finishes, branding and packaging are also available.

Our product range includes standard peepholes, wide-angle door viewers, brass door viewers, viewers with privacy covers, door eyes and fire-rated configurations subject to model requirements.

Door Viewer Product Range

Select a door viewer according to the viewing angle, door hole diameter, door thickness, body material and application.

Door Viewer TypeMain FeaturesTypical ApplicationsConfirm Before Ordering
Brass Door ViewerBrass housing with different viewing-angle and finish optionsApartments, hotels, residential entrance doors, branded hardware rangesAngle, diameter, door thickness, finish
Zinc Alloy Door ViewerCost-effective option for volume purchasingWholesale, residential projects, door factoriesDiameter, lens, door thickness, finish

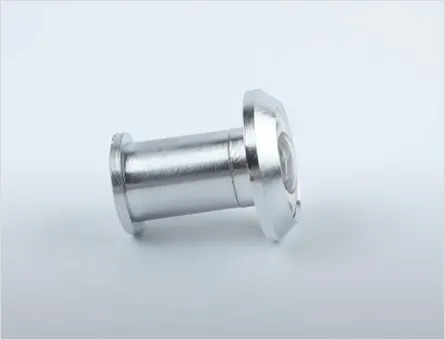

180° Door ViewerStandard wide viewing rangeHomes, apartments, interior entrance doorsHole diameter and door thickness
220° Wide Angle Door ViewerWider field of view with reduced side blind spotsApartments, hotels, security and entrance doorsViewer dimensions, lens and door thickness
Door Viewer With CoverInterior privacy cover blocks the viewer opening when not in useHotels, apartments and residential entrance doorsCover design, angle, door thickness
Door Eye / PeepholeTraditional mechanical optical viewerWooden, metal and security doorsHole size, tube length, viewing angle
Fire Rated Door ViewerFor projects requiring specific fire-door performanceHotel doors, apartment fire doors, commercial projectsFire rating, test standard and applicable documentation

How to Choose a Door Viewer

A door viewer should be selected by installation dimensions and optical requirements, not by appearance alone.

Selection FactorWhat to CheckWhy It Matters
Viewing Angle180°, 200°, 220° or model-specific angleDetermines the visible area outside the door
Door Hole DiameterExisting drilled hole or required installation diameterMust match the viewer body
Door ThicknessMeasure the complete door panel thicknessDetermines the required viewer tube length
Body MaterialBrass, zinc alloy or available material by modelAffects price, finish and product positioning
Lens TypeGlass or plastic according to selected modelAffects optical design and cost
Privacy CoverWith or without an interior coverUseful where additional privacy is required
Surface FinishChrome, nickel, brass, antique or other available finishCan be matched with other door hardware
Fire RequirementRequired rating, test standard and certificationImportant for specified fire-door applications

180° vs 220° Wide Angle Door Viewers

Viewing angle is one of the main differences between door viewer models.

Viewing AngleSelectionTypical Use
180°Suitable for standard entrance visibility requirementsHomes, apartments, residential doors
200°Suitable where a wider entrance view is preferredApartments, hotels, commercial doors
220°Provides a wider field of view and reduces side blind spotsHotels, entrance doors, security-focused applications

As a Wide Angle Door Viewer Manufacturer, Jifu offers different optical configurations according to the selected model. Buyers should confirm the required viewing angle together with the door thickness and installation diameter.

If you are sourcing from a Wide Angle Door Viewer Manufacturer for an existing door program, send the current door viewer dimensions or installation drawing for matching.

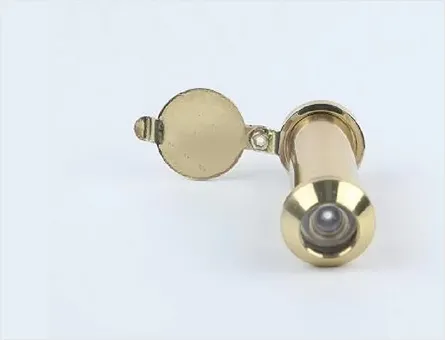

Brass Door Viewer & Brass Door Peephole

Jifu supplies several brass door viewer configurations, including brass peepholes and wide-angle models.

As a Brass Door Viewer Manufacturer and Brass Door Peephole Manufacturer, we can support different viewing angles, dimensions and surface finishes according to the selected model.

Brass Door Viewer Options

A Brass Door Viewer Manufacturer is suitable for buyers developing coordinated hardware ranges where the viewer needs to match the finish of the handle, cylinder or other entrance hardware.

See our Door Handles and Lock Cylinders for compatible door hardware sourcing.

Brass vs Zinc Alloy Door Viewer

MaterialMain Purchasing AdvantageRecommended For
BrassSuitable for premium hardware programs and multiple decorative finishesHotels, residential entrance doors, hardware brands
Zinc AlloyCost-effective for high-volume purchasing and flexible product designsWholesalers, distributors, residential projects

The final material should be selected according to target price, finish, product positioning and application rather than material alone.

Door Viewer Types & Common Product Names

Door viewers are also commonly referred to as door peepholes, door eyes or spyholes in different markets. These terms generally refer to the same type of mechanical optical viewer installed in entrance doors.

As a Door Peephole Manufacturer and door viewer supplier, Jifu offers configurations for residential, hospitality and commercial door applications, including:

For door factories, distributors and private-label buyers searching for a Door Eye Manufacturer, product selection should be based on the actual installation requirements rather than the product name used in the local market.

Before ordering, confirm:

For replacement projects, provide the existing viewer dimensions or a product photo so we can check compatibility.

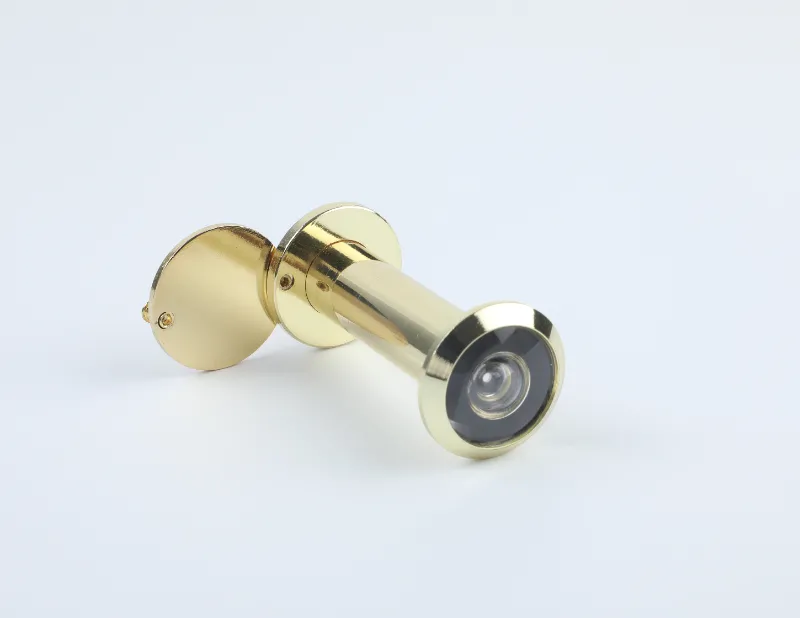

Door Viewer With Privacy Cover

A door viewer with an interior cover closes the inside opening when the peephole is not being used.

It is commonly selected for:

Confirm the cover structure, viewing angle, viewer diameter and door thickness before ordering.

Door Viewer Diameter & Door Thickness

Different door viewer models use different body diameters and tube lengths. The dimensions must match the prepared door hole and door thickness.

Before ordering, measure:

Replacement Tip: Do not select a replacement door viewer only by viewing angle or finish. Confirm the existing installation hole and door thickness first.

If a standard model does not match your door structure, contact our Customization Team to evaluate a different tube length or dimensional configuration.

Door Viewers by Application

ApplicationRecommended ConfigurationMain Points to Confirm
Apartment Doors180°–220° door viewer, optional privacy coverDoor thickness, hole diameter, viewing angle
Hotel Room DoorsWide-angle viewer with privacy cover; fire-rated model when specifiedFire-door specification, privacy cover, finish
Residential Entrance DoorsBrass or zinc alloy standard/wide-angle viewerBudget, finish, viewing angle
Security DoorsWide-angle viewer with suitable tube lengthDoor thickness, viewer diameter
Commercial DoorsModel selected according to project specificationMaterial, installation dimensions, required standard
ReplacementMatch existing viewer dimensionsHole diameter, door thickness, existing dimensions

Fire Rated Door Viewer Manufacturer

Fire-door projects may require a door viewer with specified fire-performance documentation. Requirements vary by door system, market and project specification.

If you are sourcing a Fire Rated Door Viewer Manufacturer, provide:

As a Fire Rated Door Viewer Manufacturer, applicable fire testing or certification must be confirmed against the specific product model before quotation and ordering.

You can also review our available Certifications or contact us with your project specification.

UL Listed Door Viewer Manufacturer

For U.S. or project specifications requiring a UL-listed fire door viewer, the exact listing status and supporting documentation should be checked for the selected model.

When contacting a UL Listed Door Viewer Manufacturer, please provide:

Jifu can review your requirements and confirm whether an applicable model and documentation are available. Do not assume that every door viewer model carries the same UL listing.

For buyers searching for a UL Listed Door Viewer Manufacturer, we recommend confirming the model, listing details and intended fire-door application before bulk purchasing.

OEM Door Viewer Supplier

As an OEM Door Viewer Supplier, Jifu supports existing product customization and new door viewer programs for hardware brands, distributors and door manufacturers.

Custom ItemOptions / Information Required
Viewing AngleAccording to available model or project requirement
Door Hole DiameterAccording to door preparation and viewer structure
Door ThicknessUsed to determine viewer tube length
Body MaterialBrass, zinc alloy or available material by model
LensGlass or plastic according to product structure
Privacy CoverWith or without cover
FinishChrome, nickel, brass, antique, black or available OEM finish
LogoOEM branding according to product structure
PackagingNeutral or private-label packaging
Fire RequirementProvide required standard and documentation

Our OEM Door Viewer Supplier service can also support product drawings, samples, finish matching and packaging requirements.

For a new specification, visit our Custom Door Hardware page or send us your current sample and drawing.

Wholesale Door Viewer Supplier

As a Wholesale Door Viewer Supplier, Jifu supplies bulk door viewers for:

For wholesale purchasing, provide the required model, material, finish, viewing angle, quantity and target market.

Selected standard products may start from 500 pcs. MOQ should be confirmed by model, finish and customization requirement.

A Wholesale Door Viewer Supplier can also combine door viewers with other entrance hardware. View ourDoor Handles,Lock Cylinders andMechanical Door Locks.

Door Viewer Finish Options

Available finishes depend on the selected material and model and can include:

The door viewer finish can be matched with the selected door handle and other entrance hardware to create a consistent hardware set.

Door Viewer Quality Inspection

Door viewer inspection focuses on optical performance, installation dimensions and assembly.

Optical Inspection

Dimensional Inspection

Assembly & Finish Inspection

How to Order a Replacement Door Viewer

For replacement projects, provide the following information to avoid installation mismatch:

  1. Photo of the existing door viewer

  2. Door hole diameter

  3. Door thickness

  4. Existing viewer body diameter

  5. Required viewing angle

  6. Material requirement

  7. Finish

  8. With or without privacy cover

  9. Required quantity

Our team can compare these dimensions with existing models or evaluate an OEM replacement.

Why Source From a Door Viewer Manufacturer China Supplier?

Working directly with a Door Viewer Manufacturer China supplier is suitable for buyers who require multiple models, OEM finishes, private-label packaging or coordinated door hardware.

Jifu combines:

This allows distributors and door manufacturers to source viewers together with related door hardware from one supplier.

Door Viewer FAQ

What information should I provide when ordering a door viewer?

Provide the door thickness, installation hole diameter, required viewing angle, material, finish, privacy-cover requirement and quantity. For replacement orders, also provide photos and dimensions of the existing viewer.

What is the difference between a door viewer, door peephole and door eye?

Door viewer, door peephole and door eye are commonly used names for a mechanical optical viewing device installed in a door. As a Door Viewer Manufacturer, Door Peephole Manufacturer and Door Eye Manufacturer, Jifu supplies different configurations according to door and market requirements.

Do you manufacture brass door peepholes?

Yes. Our product range includes brass peepholes and brass wide-angle viewers. As a Brass Door Peephole Manufacturer, available dimensions, angles and finishes should be confirmed by model.

Do you manufacture wide-angle door viewers?

Yes. Jifu supplies 180° and 220° products among its current door viewer range. As a Wide Angle Door Viewer Manufacturer, we recommend selecting the angle together with the door thickness and installation diameter.

Can you customize door viewers for our brand?

Yes. As an OEM Door Viewer Supplier, Jifu can support model selection, dimensions, finishes, branding and packaging subject to the selected product structure and order quantity.

Can the door viewer match our door handle finish?

Yes. Finish matching can be evaluated for compatible models. You can also source matching Door Handles from Jifu.

Are your fire-rated door viewers UL listed?

UL listing and fire-rating documentation must be confirmed for the specific model. If you require a Fire Rated Door Viewer Manufacturer or UL Listed Door Viewer Manufacturer, send us the applicable standard, required fire rating and project documentation requirements before ordering.

What is the MOQ for wholesale door viewers?

MOQ varies by model and customization requirement. Selected products may start from 500 pcs. As a Wholesale Door Viewer Supplier, we recommend confirming the model, finish and quantity together before quotation.

Request a Door Viewer Quote

Looking for a Door Viewer Manufacturer, Door Peephole Manufacturer, Brass Door Viewer Manufacturer or OEM Door Viewer Supplier?

Please send:

Contact Jifu to confirm the suitable door viewer model, OEM options, samples and bulk quotation.


Learn More +

Shop Door Viewers by Material

Choose by Viewing Angle

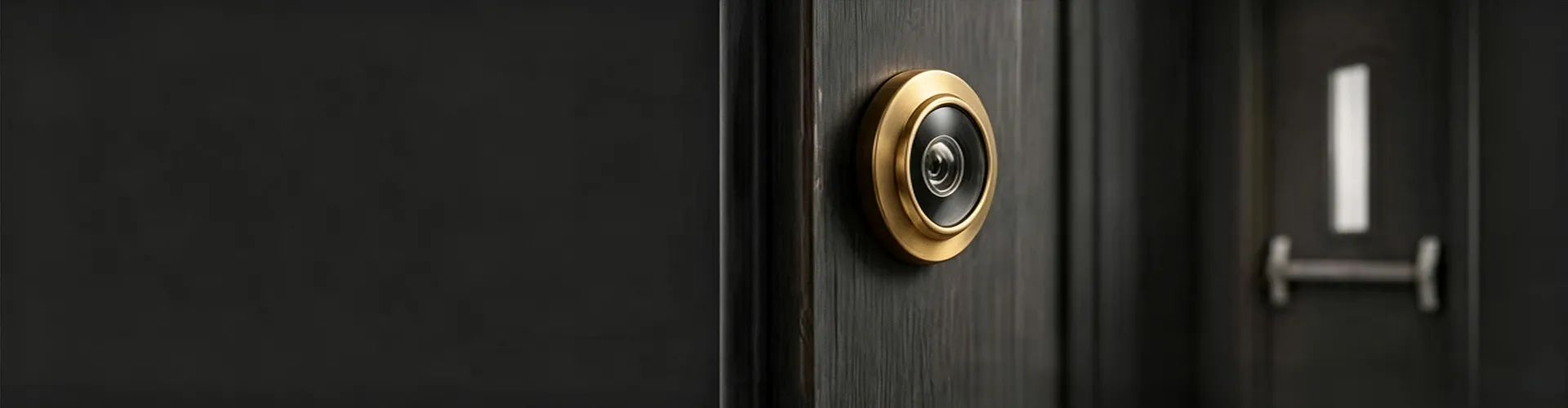

UL ListedFire-Rated Door Viewers

UL ListedFire-Rated Door Viewers

Designed for fire doors.Tested performance. Trusted safety.

View More +

Shop Door Viewers by Material

14 mm 180° Zinc Door Viewer (Fits 25-42mm Doors)

14 mm 180° Zinc Door Viewer (Fits 25-42mm Doors)

Item Number: ZB-04

Material: BRASS +Plastic LENS

Diameter: 14mm

Door thickness: 25mm – 42mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.

If your preferred electroplating color is not listed here, other custom plating colors are available upon request.


MOQ500PCS
PortNINGBO /SHANGHAI
BRAND JIFU/OEM
MaterialBrass
CertificationCE/UL
Sample Yes
Angle180 degree
FITS DOOR 25-42MM
14mm 180° Brass Door Viewer (Fits 35-60mm Doors)

14mm 180° Brass Door Viewer (Fits 35-60mm Doors)

Item Number: ZB-05

Material: BRASS +Plastic LENS

Diameter: 14mm

Door thickness: 35mm – 60mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.

If your preferred electroplating color is not listed here, other custom plating colors are available upon request.


MOQ500PCS
PortNINGBO /SHANGHAI
BRAND JIFU/OEM
MaterialBrass
CertificationCE/UL
Sample Yes
Angle180 degree
FITS DOOR 35-60MM
14 mm 200° Brass Door Viewer (Fits 35-60mm Doors)

14 mm 200° Brass Door Viewer (Fits 35-60mm Doors)

Item Number: B-207

Material: BRASS +Plastic LENS

Diameter: 14mm

Door thickness: 35mm – 60mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.

If your preferred electroplating color is not listed here, other custom plating colors are available upon request.


MOQ500PCS
PortNINGBO /SHANGHAI
BRAND JIFU/OEM
MaterialBrass
CertificationCE/UL
Sample Yes
Angle200 degree
FITS DOOR 35-60MM
16 mm 200° Brass Door Viewer (Fits 60-100mm Doors)

16 mm 200° Brass Door Viewer (Fits 60-100mm Doors)

Item Number: B-206

Material: BRASS +Plastic LENS

Diameter: 16mm

Door thickness: 60mm – 100mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.

If your preferred electroplating color is not listed here, other custom plating colors are available upon request.


MOQ500PCS
PortNINGBO /SHANGHAI
BRAND JIFU/OEM
MaterialBrass
CertificationCE/UL
Sample Yes
Angle200 degree
FITS DOOR 60-100MM
16 mm 200° Brass Door Viewer (Fits 50-75mm Doors)

16 mm 200° Brass Door Viewer (Fits 50-75mm Doors)

Item Number: B-205

Material: BRASS +Plastic LENS

Diameter: 16mm

Door thickness: 50mm – 75mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.

If your preferred electroplating color is not listed here, other custom plating colors are available upon request.


MOQ500PCS
PortNINGBO /SHANGHAI
BRAND JIFU/OEM
MaterialBrass
CertificationCE/UL
Sample Yes
Angle200 degree
FITS DOOR 50-75MM
16 mm 200° Brass Door Viewer (Fits 25-42mm Doors)

16 mm 200° Brass Door Viewer (Fits 25-42mm Doors)

Item Number: B-202

Material: BRASS +Plastic LENS

Diameter: 16mm

Door thickness: 25mm – 42mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.

If your preferred electroplating color is not listed here, other custom plating colors are available upon request.


MOQ500PCS
PortNINGBO /SHANGHAI
BRAND JIFU/OEM
MaterialBrass
CertificationCE/UL
Sample Yes
Angle200 degree
FITS DOOR 25-42MM
12 mm 160° Brass Door Viewer (Fits 35-57mm Doors)

12 mm 160° Brass Door Viewer (Fits 35-57mm Doors)

Item Number: B-10

Material: BRASS +Plastic LENS

Diameter: 12mm

Door thickness: 35mm – 57mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.

If your preferred electroplating color is not listed here, other custom plating colors are available upon request.


MOQ500PCS
PortNINGBO /SHANGHAI
BRAND JIFU/OEM
MaterialBrass
CertificationCE/UL
Sample Yes
Angle160 degree
FITS DOOR 35-57MM
12 mm 160° Brass Door Viewer (Fits 25-38mm Doors)

12 mm 160° Brass Door Viewer (Fits 25-38mm Doors)

Item Number: B-09

Material: BRASS +Plastic LENS

Diameter: 12mm

Door thickness: 25mm – 38mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.

If your preferred electroplating color is not listed here, other custom plating colors are available upon request.


MOQ500PCS
PortNINGBO /SHANGHAI
BRAND JIFU/OEM
MaterialBrass
CertificationCE/UL
Sample Yes
Angle160 degree
FITS DOOR 25-38MM
12 mm 160° Brass Door Viewer (Fits 35-50 mm Doors)

12 mm 160° Brass Door Viewer (Fits 35-50 mm Doors)

Item Number: B-08C

Material: BRASS +Plastic LENS

Diameter: 12mm

Door thickness: 35mm – 50mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.

If your preferred electroplating color is not listed here, other custom plating colors are available upon request.


MOQ500PCS
PortNINGBO /SHANGHAI
BRAND JIFU/OEM
MaterialBrass
CertificationCE/UL
Sample Yes
Angle160 degree
FITS DOOR 35-50MM
14 mm 180° Brass Door Viewer (Fits 35-60mm Doors)

14 mm 180° Brass Door Viewer (Fits 35-60mm Doors)

Item Number: B-05

Material: BRASS +Plastic LENS

Diameter: 14mm

Door thickness: 35mm – 60mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.

If your preferred electroplating color is not listed here, other custom plating colors are available upon request.


MOQ500PCS
PortNINGBO /SHANGHAI
BRAND JIFU/OEM
MaterialBrass
CertificationCE/UL
Sample Yes
Angle180 degree
FITS DOOR 35-60MM
14 mm 180° Brass Door Viewer (Fits 35-50mm Doors)

14 mm 180° Brass Door Viewer (Fits 35-50mm Doors)

Item Number: B-03

Material: BRASS +Plastic LENS

Diameter: 14mm

Door thickness: 35mm – 50mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.

If your preferred electroplating color is not listed here, other custom plating colors are available upon request.


MOQ500PCS
PortNINGBO /SHANGHAI
BRAND JIFU/OEM
MaterialBrass
CertificationCE/UL
Sample Yes
Angle180 degree
FITS DOOR 35-50MM
14 mm 180° Brass Door Viewer (Fits 25-42mm Doors)

14 mm 180° Brass Door Viewer (Fits 25-42mm Doors)

Item Number: B-04

Material: BRASS +Plastic LENS

Diameter: 14mm

Door thickness: 25mm – 42mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.

If your preferred electroplating color is not listed here, other custom plating colors are available upon request.


MOQ500PCS
PortNINGBO /SHANGHAI
BRAND JIFU/OEM
MaterialBrass
CertificationCE/UL
Sample Yes
Angle180 degree
FITS DOOR 25-42MM
25.4mm 180° Zinc Door Viewer (Fits 70-130mm Doors)

25.4mm 180° Zinc Door Viewer (Fits 70-130mm Doors)

Item Number: ZP-627LG3

Material: Zinc +GLASS LENS

Diameter: 25.4mm

Door thickness: Suitable for door thickness of 70mm – 130mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.

If your preferred electroplating color is not listed here, other custom plating colors are available upon request.

12mm 180° Brass Door Viewer (Fits 35-50mm Doors)

12mm 180° Brass Door Viewer (Fits 35-50mm Doors)

Item Number: 12mm brass peephole.B-07

Material: BRASS +Plastic LENS

Diameter: 12mm

Door thickness: Suitable for door thickness of 35mm – 50mm

Finished: Chrome Plated (CP), Satin Nickel (SN), Physical Vapor Deposition (PVD), Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Oil Rubbed Bronze (ORB), Black (BL), Satin Chrome (SC).

12mm 160° Brass Door Viewer (Fits 35-57mm Doors)

12mm 160° Brass Door Viewer (Fits 35-57mm Doors)

Item Number: premium-brass-door-viewer-with-clear-vision.B-10C

Material: BRASS +Plastic LENS

Diameter: 12mm

Door thickness: Suitable for door thickness of 35mm – 57mm

Finished: Chrome Plated (CP), Satin Nickel (SN), Physical Vapor Deposition (PVD), Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Oil Rubbed Bronze (ORB), Black (BL), Satin Chrome (SC).

12mm 160° Brass Door Viewer (Fits 35-57mm Doors)

12mm 160° Brass Door Viewer (Fits 35-57mm Doors)

Item Number: premium-brass-door-viewer-with-clear-vision.B-10C

Material: BRASS +Plastic LENS

Diameter: 12mm

Door thickness: Suitable for door thickness of 35mm – 57mm

Finished: Chrome Plated (CP), Satin Nickel (SN), Physical Vapor Deposition (PVD), Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Oil Rubbed Bronze (ORB), Black (BL), Satin Chrome (SC).

16mm 200° Zinc Door Viewer (Fits 35-50mm Doors)

16mm 200° Zinc Door Viewer (Fits 35-50mm Doors)

The Wide View Peephole offers enhanced security by providing a broader field of vision compared to standard peepholes, allowing you to clearly see who is at your door before opening it. Perfect for both residential and commercial applications, this peephole is designed to offer a wide-angle view for maximum security and peace of mind. Featuring a high-quality optical glass lens and durable construction, the Wide View Peephole helps improve visibility and safety without compromising on the aesthetic of your door.


Item Number: SZP-208LC
Material: Zinc Alloy+ steel cover
Lens Material: Plastic lens
Diameter: 16mm
Viewing Angle: 200°
Door Thickness: Suitable for door thickness of 35mm – 50mm
Finish Options: Chrome Plated (CP), Satin Nickel (SN), Polished Brass (PB), Antique Brass (AB), Black (BL), Polished Chrome (PC)
MOQ: 500 PCS
Port: Ningbo / Shanghai
Brand: JIFU / OEM

14mm 180° Brass Door Viewer (Fits 35-60mm Doors)

14mm 180° Brass Door Viewer (Fits 35-60mm Doors)

Item Number: JF-05LG UL
Material: Brass with glass lens
Diameter: 14mm
Fits door: 35mm – 60mm
Finishes: CP (Chrome Plated), SN (Satin Nickel), PVD (Physical Vapor Deposition), PB (Polished Brass), AB (Antique Brass), AC (Antique Copper), ORB (Oil-Rubbed Bronze), BL (Black), SC (Satin Chrome), and more.
If your preferred electroplating color is not listed, custom plating options are available upon request.


MOQ500PCS
PortNINGBO /SHANGHAI
BRAND JIFU/OEM
MaterialBrass
CertificationCE/UL
Sample Yes
Angle180 degree
FITS DOOR 35-60MM
Dust proof Cover yes
14mm 180° Zinc Door Viewer (Fits 50-75mm Doors)

14mm 180° Zinc Door Viewer (Fits 50-75mm Doors)

The Spyhole Door Viewer is an essential security feature for any home or business, offering a discreet yet effective way to see who’s at your door before opening it. With its compact and durable design, this viewer allows you to maintain privacy while still keeping a clear view of your visitors. Perfect for both residential and commercial properties, it provides a wide-angle field of view, helping you identify visitors without the need to open the door. The Spyhole Door Viewer is available in multiple finishes, including brass, chrome, and matte black, to suit your door hardware style and enhance the overall aesthetic of your entryway.


Item Number: ZB-06

Material: Zinc Alloy

Lens Material: Plastic lens

Diameter: 14mm

Viewing Angle: 180°

Door Thickness: Suitable for door thickness of 50mm – 75mm

Finish Options: Chrome Plated (CP), Satin Nickel (SN), Polished Brass (PB), Antique Brass (AB), Black (BL), Polished Chrome (PC)

MOQ: 500 PCS

Port: Ningbo / Shanghai

Brand: JIFU / OEM

16mm 160° Zinc Door Viewer (Fits 60-100mm Doors)

16mm 160° Zinc Door Viewer (Fits 60-100mm Doors)

Item Number: ZP-206LC

Material: ZINC +Plastic LENS

Diameter: 16mm

Door thickness: Suitable for door thickness of 60mm – 100mm

Finished: Chrome Plated (CP), Satin Nickel (SN), Physical Vapor Deposition (PVD), Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Oil Rubbed Bronze (ORB), Black (BL), Satin Chrome (SC).

12mm 180° Brass Door Viewer (Fits 35-50mm Doors)

12mm 180° Brass Door Viewer (Fits 35-50mm Doors)

The Door Eye is a simple yet effective security solution that allows you to safely see who is outside your door before opening it. Ideal for both residential and commercial use, this peephole provides a wide viewing angle and clear visibility, offering enhanced safety and peace of mind. Made from high-quality materials, the Door Eye is designed to be durable and easy to install, providing a practical way to monitor your door without compromising your privacy. Available in various finishes, it is a perfect addition to any door style, ensuring both functionality and aesthetics.


Item Number: DE-20
Material: Brass, Stainless Steel, Zinc Alloy
Lens Material: Optical Glass
Diameter: 12mm
Viewing Angle: 180°
Door Thickness: Suitable for door thickness of 35mm – 50mm
Finish Options: Chrome Plated (CP), Satin Nickel (SN), Polished Brass (PB), Antique Brass (AB), Black (BL), Polished Chrome (PC)
MOQ: 500 PCS
Port: Ningbo / Shanghai
Brand: JIFU / OEM

12mm 160° Brass Door Viewer (Fits 30-57mm Doors)

12mm 160° Brass Door Viewer (Fits 30-57mm Doors)

Item Number: 12mm diameter brass peephole.B-08

Material: BRASS +Plastic LENS

Diameter: 12mm

Door thickness: Suitable for door thickness of 35mm – 57mm

Finished: Chrome Plated (CP), Satin Nickel (SN), Physical Vapor Deposition (PVD), Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Oil Rubbed Bronze (ORB), Black (BL), Satin Chrome (SC).

14mm 160° Brass Door Viewer (Fits 50-75mm Doors)

14mm 160° Brass Door Viewer (Fits 50-75mm Doors)

Item Number: Antique Brass-Finished Door Viewer with Wide Angle B-06

Material: BRASS +Plastic LENS

Diameter: 14mm

Door thickness: Suitable for door thickness of 50mm – 75mm

Finished: Chrome Plated (CP), Satin Nickel (SN), Physical Vapor Deposition (PVD), Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Oil Rubbed Bronze (ORB), Black (BL), Satin Chrome (SC).


MOQ500PCS
PortNINGBO /SHANGHAI
BRAND JIFU/OEM
MaterialBrass
CertificationCE/UL
Sample Yes
Angle180 degree
FITS DOOR 50-75MM
DUST PROOF COVERNO
26.5mm 220° Brass Door Viewer (Fits 60-90mm Doors)

26.5mm 220° Brass Door Viewer (Fits 60-90mm Doors)

Item Number: 220° Brass Door Viewer B-903

Material: BRASS +Plastic LENS

Diameter:26.5mm

Door thickness: Suitable for door thickness of 60mm – 90mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.


If your preferred electroplating color is not listed here, other custom plating colors are available upon request.


This extra-large 26.5mm brass door viewer offers an impressive 220° viewing angle, providing an exceptionally wide field of view. Perfectly designed for doors with thicknesses between 60mm and 90mm, it combines durability, style, and enhanced security.

14mm 160° Brass Door Viewer (Fits 25-42mm Doors)

14mm 160° Brass Door Viewer (Fits 25-42mm Doors)

Item Number: B-04

Material: BRASS +Plastic LENS

Diameter: 14mm

Door thickness: 25mm – 42mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.

If your preferred electroplating color is not listed here, other custom plating colors are available upon request.


MOQ500PCS
PortNINGBO /SHANGHAI
BRAND JIFU/OEM
MaterialBrass
CertificationCE/UL
Sample Yes
Angle180 degree
FITS DOOR 25-42MM
25.4mm 180° diameter Zinc Alloy Door Viewer

25.4mm 180° diameter Zinc Alloy Door Viewer

Item Number: ZP-627LG3

Material: Zinc +GLASS LENS

Diameter: 25.4mm

Door thickness: Suitable for door thickness of 70mm – 130mm

Finished: CP, SN. PVD, PB, AB, AC, ORB, BL, SC and so on.

If your preferred electroplating color is not listed here, other custom plating colors are available upon request.

12mm 160° Brass Door Viewer (Fits 35-50mm Doors)

12mm 160° Brass Door Viewer (Fits 35-50mm Doors)

Item Number: 12mm brass peephole.B-07

Material: BRASS +Plastic LENS

Diameter: 12mm

Door thickness: Suitable for door thickness of 35mm – 50mm

Finished: Chrome Plated (CP), Satin Nickel (SN), Physical Vapor Deposition (PVD), Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Oil Rubbed Bronze (ORB), Black (BL), Satin Chrome (SC).

Find the Right Door Viewers

Material

  • Galaxy Z
  • Galaxy Z2
  • Galaxy Z3
  • Galaxy Z4

Material2

  • Galaxy Z11
  • Galaxy Z2
  • Galaxy Z3
  • Galaxy Z4

Door Viewer

Jifu is a Door Viewer Manufacturer supplying mechanical door viewers, door peepholes and door eyes for hardware distributors, door manufacturers, importers, hospitality projects and residential door programs.

As a Door Viewer Manufacturer in China , we offer brass and zinc alloy door viewers in different viewing angles, diameters, finishes and door-thickness configurations. OEM dimensions, finishes, branding and packaging are also available.

Our product range includes standard peepholes, wide-angle door viewers, brass door viewers, viewers with privacy covers, door eyes and fire-rated configurations subject to model requirements.

Door Viewer Product Range

Select a door viewer according to the viewing angle, door hole diameter, door thickness, body material and application.

Door Viewer TypeMain FeaturesTypical ApplicationsConfirm Before Ordering
Brass Door ViewerBrass housing with different viewing-angle and finish optionsApartments, hotels, residential entrance doors, branded hardware rangesAngle, diameter, door thickness, finish
Zinc Alloy Door ViewerCost-effective option for volume purchasingWholesale, residential projects, door factoriesDiameter, lens, door thickness, finish
180° Door ViewerStandard wide viewing rangeHomes, apartments, interior entrance doorsHole diameter and door thickness
220° Wide Angle Door ViewerWider field of view with reduced side blind spotsApartments, hotels, security and entrance doorsViewer dimensions, lens and door thickness
Door Viewer With CoverInterior privacy cover blocks the viewer opening when not in useHotels, apartments and residential entrance doorsCover design, angle, door thickness
Door Eye / PeepholeTraditional mechanical optical viewerWooden, metal and security doorsHole size, tube length, viewing angle
Fire Rated Door ViewerFor projects requiring specific fire-door performanceHotel doors, apartment fire doors, commercial projectsFire rating, test standard and applicable documentation

How to Choose a Door Viewer

A door viewer should be selected by installation dimensions and optical requirements, not by appearance alone.

Selection FactorWhat to CheckWhy It Matters
Viewing Angle180°, 200°, 220° or model-specific angleDetermines the visible area outside the door
Door Hole DiameterExisting drilled hole or required installation diameterMust match the viewer body
Door ThicknessMeasure the complete door panel thicknessDetermines the required viewer tube length
Body MaterialBrass, zinc alloy or available material by modelAffects price, finish and product positioning
Lens TypeGlass or plastic according to selected modelAffects optical design and cost
Privacy CoverWith or without an interior coverUseful where additional privacy is required
Surface FinishChrome, nickel, brass, antique or other available finishCan be matched with other door hardware
Fire RequirementRequired rating, test standard and certificationImportant for specified fire-door applications

180° vs 220° Wide Angle Door Viewers

Viewing angle is one of the main differences between door viewer models.

Viewing AngleSelectionTypical Use
180°Suitable for standard entrance visibility requirementsHomes, apartments, residential doors
200°Suitable where a wider entrance view is preferredApartments, hotels, commercial doors
220°Provides a wider field of view and reduces side blind spotsHotels, entrance doors, security-focused applications

As a Wide Angle Door Viewer Manufacturer, Jifu offers different optical configurations according to the selected model. Buyers should confirm the required viewing angle together with the door thickness and installation diameter.

If you are sourcing from a Wide Angle Door Viewer Manufacturer for an existing door program, send the current door viewer dimensions or installation drawing for matching.

Brass Door Viewer & Brass Door Peephole

Jifu supplies several brass door viewer configurations, including brass peepholes and wide-angle models.

As a Brass Door Viewer Manufacturer and Brass Door Peephole Manufacturer, we can support different viewing angles, dimensions and surface finishes according to the selected model.

Brass Door Viewer Options

A Brass Door Viewer Manufacturer is suitable for buyers developing coordinated hardware ranges where the viewer needs to match the finish of the handle, cylinder or other entrance hardware.

See our Door Handles and Lock Cylinders for compatible door hardware sourcing.

Brass vs Zinc Alloy Door Viewer

MaterialMain Purchasing AdvantageRecommended For
BrassSuitable for premium hardware programs and multiple decorative finishesHotels, residential entrance doors, hardware brands
Zinc AlloyCost-effective for high-volume purchasing and flexible product designsWholesalers, distributors, residential projects

The final material should be selected according to target price, finish, product positioning and application rather than material alone.

Door Viewer Types & Common Product Names

Door viewers are also commonly referred to as door peepholes, door eyes or spyholes in different markets. These terms generally refer to the same type of mechanical optical viewer installed in entrance doors.

As a Door Peephole Manufacturer and door viewer supplier, Jifu offers configurations for residential, hospitality and commercial door applications, including:

For door factories, distributors and private-label buyers searching for a Door Eye Manufacturer, product selection should be based on the actual installation requirements rather than the product name used in the local market.

Before ordering, confirm:

For replacement projects, provide the existing viewer dimensions or a product photo so we can check compatibility.

Door Viewer With Privacy Cover

A door viewer with an interior cover closes the inside opening when the peephole is not being used.

It is commonly selected for:

Confirm the cover structure, viewing angle, viewer diameter and door thickness before ordering.

Door Viewer Diameter & Door Thickness

Different door viewer models use different body diameters and tube lengths. The dimensions must match the prepared door hole and door thickness.

Before ordering, measure:

Replacement Tip: Do not select a replacement door viewer only by viewing angle or finish. Confirm the existing installation hole and door thickness first.

If a standard model does not match your door structure, contact our Customization Team to evaluate a different tube length or dimensional configuration.

Door Viewers by Application

ApplicationRecommended ConfigurationMain Points to Confirm
Apartment Doors180°–220° door viewer, optional privacy coverDoor thickness, hole diameter, viewing angle
Hotel Room DoorsWide-angle viewer with privacy cover; fire-rated model when specifiedFire-door specification, privacy cover, finish
Residential Entrance DoorsBrass or zinc alloy standard/wide-angle viewerBudget, finish, viewing angle
Security DoorsWide-angle viewer with suitable tube lengthDoor thickness, viewer diameter
Commercial DoorsModel selected according to project specificationMaterial, installation dimensions, required standard
ReplacementMatch existing viewer dimensionsHole diameter, door thickness, existing dimensions

Fire Rated Door Viewer Manufacturer

Fire-door projects may require a door viewer with specified fire-performance documentation. Requirements vary by door system, market and project specification.

If you are sourcing a Fire Rated Door Viewer Manufacturer, provide:

As a Fire Rated Door Viewer Manufacturer, applicable fire testing or certification must be confirmed against the specific product model before quotation and ordering.

You can also review our available Certifications or contact us with your project specification.

UL Listed Door Viewer Manufacturer

For U.S. or project specifications requiring a UL-listed fire door viewer, the exact listing status and supporting documentation should be checked for the selected model.

When contacting a UL Listed Door Viewer Manufacturer, please provide:

Jifu can review your requirements and confirm whether an applicable model and documentation are available. Do not assume that every door viewer model carries the same UL listing.

For buyers searching for a UL Listed Door Viewer Manufacturer, we recommend confirming the model, listing details and intended fire-door application before bulk purchasing.

OEM Door Viewer Supplier

As an OEM Door Viewer Supplier, Jifu supports existing product customization and new door viewer programs for hardware brands, distributors and door manufacturers.

Custom ItemOptions / Information Required
Viewing AngleAccording to available model or project requirement
Door Hole DiameterAccording to door preparation and viewer structure
Door ThicknessUsed to determine viewer tube length
Body MaterialBrass, zinc alloy or available material by model
LensGlass or plastic according to product structure
Privacy CoverWith or without cover
FinishChrome, nickel, brass, antique, black or available OEM finish
LogoOEM branding according to product structure
PackagingNeutral or private-label packaging
Fire RequirementProvide required standard and documentation

Our OEM Door Viewer Supplier service can also support product drawings, samples, finish matching and packaging requirements.

For a new specification, visit our Custom Door Hardware page or send us your current sample and drawing.

Wholesale Door Viewer Supplier

As a Wholesale Door Viewer Supplier, Jifu supplies bulk door viewers for:

For wholesale purchasing, provide the required model, material, finish, viewing angle, quantity and target market.

Selected standard products may start from 500 pcs. MOQ should be confirmed by model, finish and customization requirement.

A Wholesale Door Viewer Supplier can also combine door viewers with other entrance hardware. View ourDoor Handles,Lock Cylinders andMechanical Door Locks.

Door Viewer Finish Options

Available finishes depend on the selected material and model and can include:

The door viewer finish can be matched with the selected door handle and other entrance hardware to create a consistent hardware set.

Door Viewer Quality Inspection

Door viewer inspection focuses on optical performance, installation dimensions and assembly.

Optical Inspection

Dimensional Inspection

Assembly & Finish Inspection

How to Order a Replacement Door Viewer

For replacement projects, provide the following information to avoid installation mismatch:

  1. Photo of the existing door viewer

  2. Door hole diameter

  3. Door thickness

  4. Existing viewer body diameter

  5. Required viewing angle

  6. Material requirement

  7. Finish

  8. With or without privacy cover

  9. Required quantity

Our team can compare these dimensions with existing models or evaluate an OEM replacement.

Why Source From a Door Viewer Manufacturer China Supplier?

Working directly with a Door Viewer Manufacturer China supplier is suitable for buyers who require multiple models, OEM finishes, private-label packaging or coordinated door hardware.

Jifu combines:

This allows distributors and door manufacturers to source viewers together with related door hardware from one supplier.

Door Viewer FAQ

What information should I provide when ordering a door viewer?

Provide the door thickness, installation hole diameter, required viewing angle, material, finish, privacy-cover requirement and quantity. For replacement orders, also provide photos and dimensions of the existing viewer.

What is the difference between a door viewer, door peephole and door eye?

Door viewer, door peephole and door eye are commonly used names for a mechanical optical viewing device installed in a door. As a Door Viewer Manufacturer, Door Peephole Manufacturer and Door Eye Manufacturer, Jifu supplies different configurations according to door and market requirements.

Do you manufacture brass door peepholes?

Yes. Our product range includes brass peepholes and brass wide-angle viewers. As a Brass Door Peephole Manufacturer, available dimensions, angles and finishes should be confirmed by model.

Do you manufacture wide-angle door viewers?

Yes. Jifu supplies 180° and 220° products among its current door viewer range. As a Wide Angle Door Viewer Manufacturer, we recommend selecting the angle together with the door thickness and installation diameter.

Can you customize door viewers for our brand?

Yes. As an OEM Door Viewer Supplier, Jifu can support model selection, dimensions, finishes, branding and packaging subject to the selected product structure and order quantity.

Can the door viewer match our door handle finish?

Yes. Finish matching can be evaluated for compatible models. You can also source matching Door Handles from Jifu.

Are your fire-rated door viewers UL listed?

UL listing and fire-rating documentation must be confirmed for the specific model. If you require a Fire Rated Door Viewer Manufacturer or UL Listed Door Viewer Manufacturer, send us the applicable standard, required fire rating and project documentation requirements before ordering.

What is the MOQ for wholesale door viewers?

MOQ varies by model and customization requirement. Selected products may start from 500 pcs. As a Wholesale Door Viewer Supplier, we recommend confirming the model, finish and quantity together before quotation.

Request a Door Viewer Quote

Looking for a Door Viewer Manufacturer, Door Peephole Manufacturer, Brass Door Viewer Manufacturer or OEM Door Viewer Supplier?

Please send:

Contact Jifu to confirm the suitable door viewer model, OEM options, samples and bulk quotation.


Learn More +

Product Display

< 1 2 >
Add to Inquiry List

OEM & Custom Solutions

Finish

Finish

Custom finishes to match your project.

Finish

Finish

Custom finishes to match your project.22

Our Factory

Since 1985, Wenzhou Jifu Hardware has specializedin precision door viewer manufacturing. Advancedproduction, optical assembly and strict QC ensureconsistent performance and long-term reliabllity.

Door Viewer Applications

FAQ

Q:Are door knockers suitable for both residential and commercial use?

A:

Yes, our door knockers are suitable for both residential and commercial properties, adding a stylish touch to any entrance.

Q:Are door knockers suitable for both residential and commercial use?

A:

Yes, our door knockers are suitable for both residential and commercial properties, adding a stylish touch to any entrance.

Q:Are door knockers suitable for both residential and commercial use?

A:

Yes, our door knockers are suitable for both residential and commercial properties, adding a stylish touch to any entrance.

Q:Are door knockers suitable for both residential and commercial use?

A:

Yes, our door knockers are suitable for both residential and commercial properties, adding a stylish touch to any entrance.

Call Us

+86 136 3429 8035

Our Email

lisa@chinajifu.com

Our Address

No.47 Yangliu Road, Wenzhou, Zhejiang, China

ABOUT US

Wenzhou Jifu Hardware Co., Ltd. was founded in 1999, formerly known as Wenzhou Xiangyang decoration factory(founded in 1985), through social change and corporate restructuring, Jifu’s hard-working and innovative quality is unchanged.

Request a Quote

*
*
*
*

Copyright © Wenzhou Jifu Hardware Co., Ltd. All Rights Reserved. | Sitemap | Technical Support: Reanod

Recommend Products: Traditional Door Viewer Supplier Brass Peephole Supplier China Brass Door Viewer Classic Peephole Manufacturer Chinese Door Spyhole Supplier Aluminum Door Lock Cylinder for Cabinet Aluminum Door Lock Cylinder for Garage Aluminum Door Lock Cylinder for Gate Aluminum Door Lock Cylinder for Glass Door Aluminum Door Lock Cylinder for Hotel Interior Lever Door Handle Supplier CE Certified Door Hardware Supplier Zinc Alloy Door Handle Manufacturer Hotel Door Hardware Solutions
