How to Choose the Right Door Viewer: A Complete Buying Guide

# How to Choose the Right Door Viewer: Viewing Angle, Door Thickness, Material, and Fire Rating

For standard residential doors, a **180° or 200° brass or zinc-alloy door viewer** is generally the most practical choice. For apartment entrance doors, hotels, and certified fire-door projects, choose a fire-rated model with verifiable certification, the correct fire-resistance rating, and a suitable door-thickness range. For thick security doors or replacement projects, always confirm the installation-hole diameter and adjustable barrel length before ordering. Appearance and price should be considered only after these technical requirements have been verified.

## Use Scenario One: Standard Residential and Apartment Doors

For standard houses, apartments, and non-fire-rated entrance doors, the main selection factors are viewing angle, door thickness, installation-hole diameter, material, and target price.

A **180° door viewer** offers a broad and relatively natural view of the area outside the door. It is suitable for most houses and apartments. A **200° door viewer** provides wider side visibility and is often a better option for apartment corridors or entrances with limited space. Although a 220° model offers an even wider view, it may produce more noticeable distortion near the edges. A larger viewing angle is therefore not automatically better for every application.

Door thickness is one of the most frequently overlooked specifications. Common adjustable ranges include:

* **25–38 mm**

* **35–60 mm**

* **50–75 mm**

The total thickness of the door leaf should be measured, including decorative panels or surface layers. For example, a door measuring 45 mm thick cannot use a viewer with a maximum installation range of only 38 mm. If the threaded barrel is too short, the two parts cannot be connected securely.

The installation-hole diameter must also be checked. Common door-viewer diameters include **12 mm, 14 mm, 16 mm, 18 mm, 25.4 mm, and 26.5 mm**. For replacement orders, the existing hole should be measured before selecting a new model. For new door projects, the door manufacturer should drill the hole according to the approved door-viewer specification.

Material affects durability, appearance, weight, and price:

* **Brass door viewers** offer good structural stability and are suitable for mid-range and premium product lines.

* **Zinc-alloy door viewers** provide flexible design and finish options at a competitive cost.

* **Plastic door viewers** are lightweight and economical, making them suitable for price-sensitive housing projects.

For a typical residential product line, a brass-body door viewer with glass lenses and a **180°–200° viewing angle** provides a balanced combination of durability, clarity, and market acceptance.

## Use Scenario Two: Fire Doors in the United States and Canada

Door viewers installed in apartment fire doors, hotel doors, and public-building fire doors require more careful selection. Having glass lenses does not automatically make a product suitable for a fire door. The complete product must have a tested construction, a clearly identified model, and certification accepted in the target market.

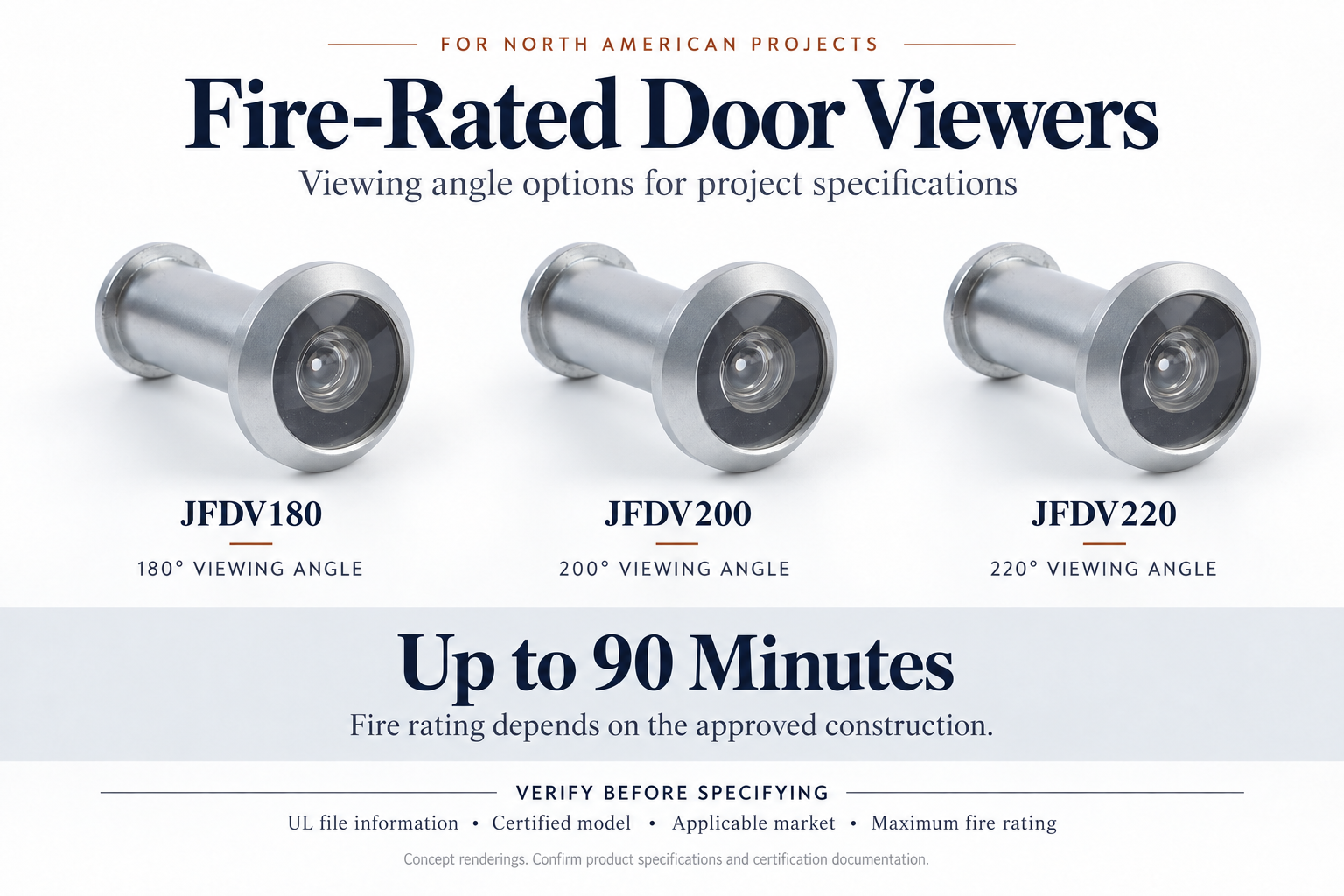

For North American projects, buyers should verify the UL file information, certified model, applicable market, and maximum fire rating. Models such as **JFDV180, JFDV200, and JFDV220** correspond to viewing angles of **180°, 200°, and 220°**, respectively, and can be configured for fire ratings of up to **90 minutes**, depending on the approved construction.

The required fire rating should match the door assembly and project specification. A 20-minute viewer should not be substituted for a project requiring a 90-minute rating.

Lens construction can also differ according to the required fire rating. For example:

* A **20-minute configuration** may use three plastic lenses and one glass lens with a thickness of at least **2.5 mm**.

* A **90-minute configuration** may require a four-glass-lens construction.

These products may look similar externally, but their internal components and approved applications are different. Buyers should not judge fire performance based only on the metal body or outside appearance.

Door thickness must still be confirmed for fire-rated applications. Common fire-door ranges include **35–60 mm** and **50–75 mm**. A correctly certified viewer may still be unsuitable if its threaded barrel cannot accommodate the actual door thickness.

Before placing an order, the following certification details should be checked:

* Certification organization and file number

* Exact certified model number

* Maximum fire rating

* Coverage for the United States, Canada, or both markets

* Product marking and label requirements

* Approved lens and body construction

* Permitted door-thickness range

Statements such as “fire-resistant,” “fire tested,” or “made for fire doors” do not replace valid certification. The model shown on the certificate should match the product, packaging, label, and purchase order.

For a 90-minute apartment fire-door project, the safest purchasing decision is a listed **90-minute model with glass-lens construction**, verified certification documents, and an installation range matching the actual door thickness.

## Use Scenario Three: Thick Doors, Replacement Projects, and Custom Orders

Hotels, security doors, steel entrance doors, and heavy-duty residential doors may be significantly thicker than standard interior doors. In these applications, the adjustable barrel length is often more important than the product’s external design.

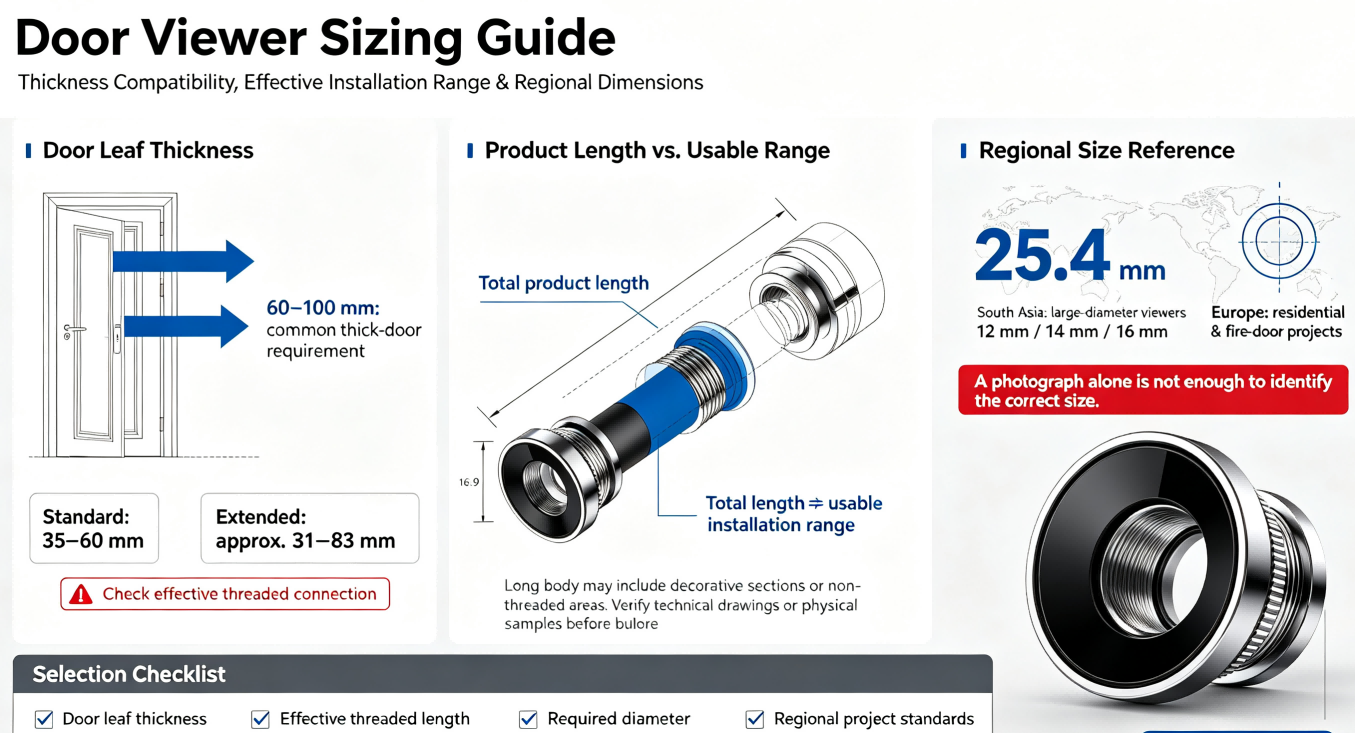

Some thick-door projects require a door viewer suitable for **60–100 mm** door leaves. A standard model designed for 35–60 mm doors cannot be installed correctly on a 90 mm door. Certain extended viewers can accommodate approximately **31–83 mm**, but the effective threaded connection must still be verified.

The total product length should not be confused with the usable installation range. A long body may include decorative sections or areas without usable threads. Technical drawings or physical samples should be checked before confirming a bulk order.

Regional requirements also vary. For example, some South Asian markets commonly use large-diameter door viewers measuring **25.4 mm**, while European residential and fire-door projects may use **12 mm, 14 mm, or 16 mm** products. A photograph alone is not enough to identify the correct size.

Viewing angle should be selected according to the installation environment:

* Choose **180°** when natural image quality and central clarity are the priority.

* Choose **200°** for a wider view in apartment corridors.

* Choose **220°** where maximum side visibility is required and some edge distortion is acceptable.

Samples should be checked for central clarity, edge distortion, performance under backlighting, lens scratches, body finish, and barrel adjustment. A viewer may appear clear under factory lighting but perform differently when strong corridor lighting faces the door.

For OEM and private-label orders, all customization requirements should be confirmed together:

* Body material

* Viewing angle

* Door-thickness range

* Installation-hole diameter

* Lens construction

* Inside cover design

* Surface finish

* Logo position

* Product label

* Retail packaging

* Barcode requirements

Common finishes include polished chrome, satin nickel, matte black, polished brass, antique brass, and antique bronze. When several finishes are included in one order, approved color samples should be retained as production standards.

Order quantity can affect customization options. A standard brass door-viewer order may start at approximately **3,000 pieces per model**, while customized packaging, logos, colors, or special structures may require around **5,000 pieces**. Exact quantities depend on the model and customization level.

## Essential Specifications to Confirm Before Ordering

A professional door-viewer inquiry should include the following information:

1. Target country or sales market

2. Standard door or fire-rated door

3. Required fire rating, such as 20 or 90 minutes

4. Total door thickness

5. Installation-hole diameter

6. Required viewing angle

7. Body and lens materials

8. Surface finish

9. Order quantity per model and finish

10. Logo, labeling, and packaging requirements

Providing these details makes it easier to receive an accurate quotation and suitable sample. It also reduces the risk of receiving products that cannot be installed or do not satisfy the project specification.
